SMART-CON™
HORIZON™ Tower Lighting Controller
The SMART-CON HORIZON™ Controller is designed to operate a FAA Type A1, D1 or E1 lighting system. The SMART-CON is available in different input/output voltage configurations – AC/AC, DC/DC, or AC/DC. All models have a NEMA 4 outdoor housing. A calibrated switched-leg photocell is used for automatic day/night switching. Fault Codes are generated for quick analysis of system condition. Comprehensive status indicators and alarm contacts for easy connection to remote monitoring systems.
The SMART-CON HORIZON™ Controller is designed to operate a FAA Type A1, D1 or E1 lighting system. The SMART-CON is available in different input/output voltage configurations – AC/AC, DC/DC, or AC/DC. All models have a NEMA 4 outdoor housing. A calibrated switched-leg photocell is used for automatic day/night switching. Fault Codes are generated for quick analysis of system condition. Comprehensive status indicators and alarm contacts for easy connection to remote monitoring systems.
- Multiple Input/Output Voltage Systems
- AC/AC 120/240VAC to 120/240VAC
- AC/DC 120/240VAC to +48VDC
- DC/DC +48VDC to +48VDC or -48VDC to +48VDC
- Multiple FAA Lighting Types (A-1, D-1, E-1) from single controller
- Flash beacon and sidelights per FAA specifications (Avian Compliant)

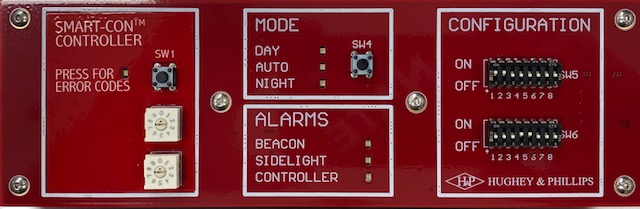

- Single User Interface Board with switches for ease of setup and testing
- Push-button Alarm Verification
- ON/OFF Control Power Switch & Safety Interlock Switch
- Removeable terminal blocks for ease of wiring and troubleshooting
- FAA Calibrated Switched Leg Voltage Photocell
- Lightning protection on all inputs & outputs
- Powder-coated NEMA 4 enclosure
- 2-Year Standard Warranty
| Model # | Input Voltage | Output Voltage | Beacon | Sidelight Level | Photocell** D1 or E1 |
Photocell** A1 |
| 70-0020-001 | 120/240VAC | 120/240VAC | 1 | 1 (1-4 Lamps) | 77-3259 | 77-3258 |
| 70-0020-003 | 48VDC | 48VDC | 1 | 1 (1-4 Lamps) | MSC0037 | MSC0040 |
| 70-0020-005 | 120/240VAC | 120/240VAC | 1 | 1 (1-4 Lamps) | MSC0037 | MSC0040 |
| 70-0020-007 | 48VDC | 48VDC | 1 | 1 (1-4 Lamps) | MSC0037 | MSC0040 |
**Photocell sold separately
