L-850 A/B/C/D/E/T LED

Style-3 Runway Centerline, Touchdown Zone, Threshold/End, Approach & Intersection Light

This Style -3 Fixture is less than 0.25 inches above ground height. It has a lower power consumption and less required maintenance (compared to the non-LED version), resulting in lower life-cycle costs. It's easy to maintain with all components of the fixture being easily replaced. The L-850 operates on 3-step and 5-step ferroresonant or thyristor CCRs and features an optional thermostatically controlled heater (Arctic Kit), reducing overall energy consumption. The LED's fixture uses high-strength assembly, stainless steel hardware, and a hardened optical glass lens; joined with seals tested to resist Cryotech XT350, EX180, and E36 de-icing fluids. The L-850's LED life greater than 50,000 hours and has an operating temperature range of -40 ºC to +55 ºC (-40 ºF to +131 ºF).

View Datasheet

Part Number: Description

AC2424-2Q2-00303: L-868B Primary Can, 24″ Deep

11174-01: L-823Primary Connector Kit (8 awg, .320″/.430″)

11805-01: L-823 Complete Kit (8 awg, .320″/.430″)

A2-20-0089-001: Heat Shrink Tubing Kit

AF540204Y: L-868B FlangeRing,1/4” with EpoxyDam

ISOLATION TRANSFORMERS:

L-830-1 30/45W 6.6A/6.6A, 60Hz 11680

L-830-3 65W 6.6A/6.6A, 60Hz 11682

L-830-4 100W 6.6A/6.6A, 60Hz 11683

L-830-6 200W 6.6A/6.6A, 60Hz 11685

L-830-10 300W 6.6A/6.6A, 60Hz 11736

L-830-17 20/25W 6.6A/6.6A, 60Hz 11729

L-830-18 150W 6.6A/6.6A, 60Hz 11730

(L-850A) Runway Centerline, Land and Hold Short Operations (LAHSO)

Bidirectional: White-White,White-Red
Unidirectional:White, Red

(L-850B) Runway Touchdown Zone; Medium Intensity Approach Lighting System

Unidirectional: White

(L-850C) Runway Edge, Displaced Threshold

Bidirectional:White-White,
White- Yellow,White-Red,
Yellow-Red, Yellow-Green

(L-850D) Runway Threshold/end

Bidirectional:Green-Red,
Red-Red
Unidirectional:Green
Unidirectional: Red

(L-850E) Medium Intensity Approach\ Lighting System; Runway

Unidirectional: Green

(L-850T) Runway Status Lights (RWSL) Takeoff Hold Light (THL), Runway Intersection Light

Unidirectional: Red

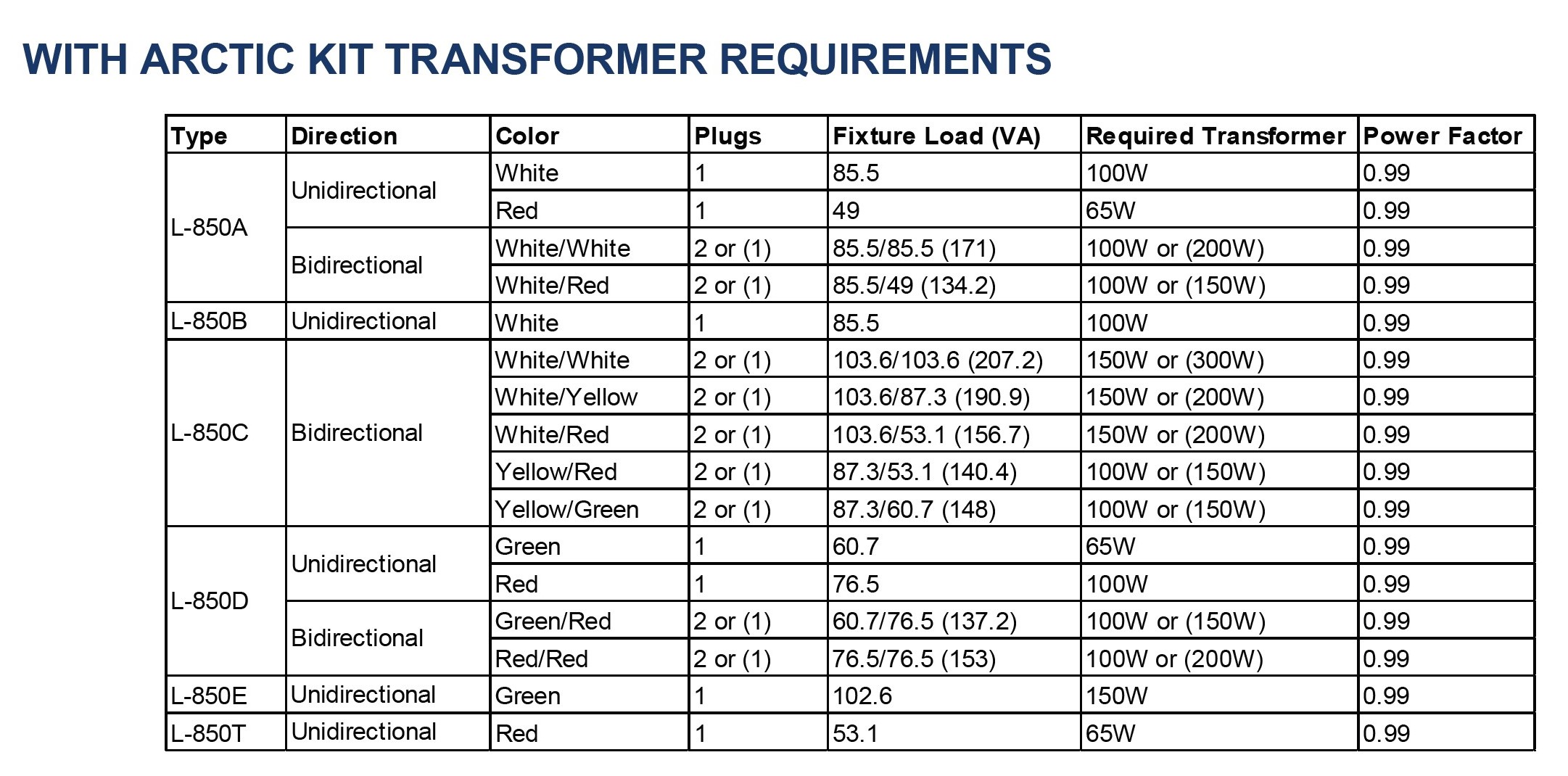

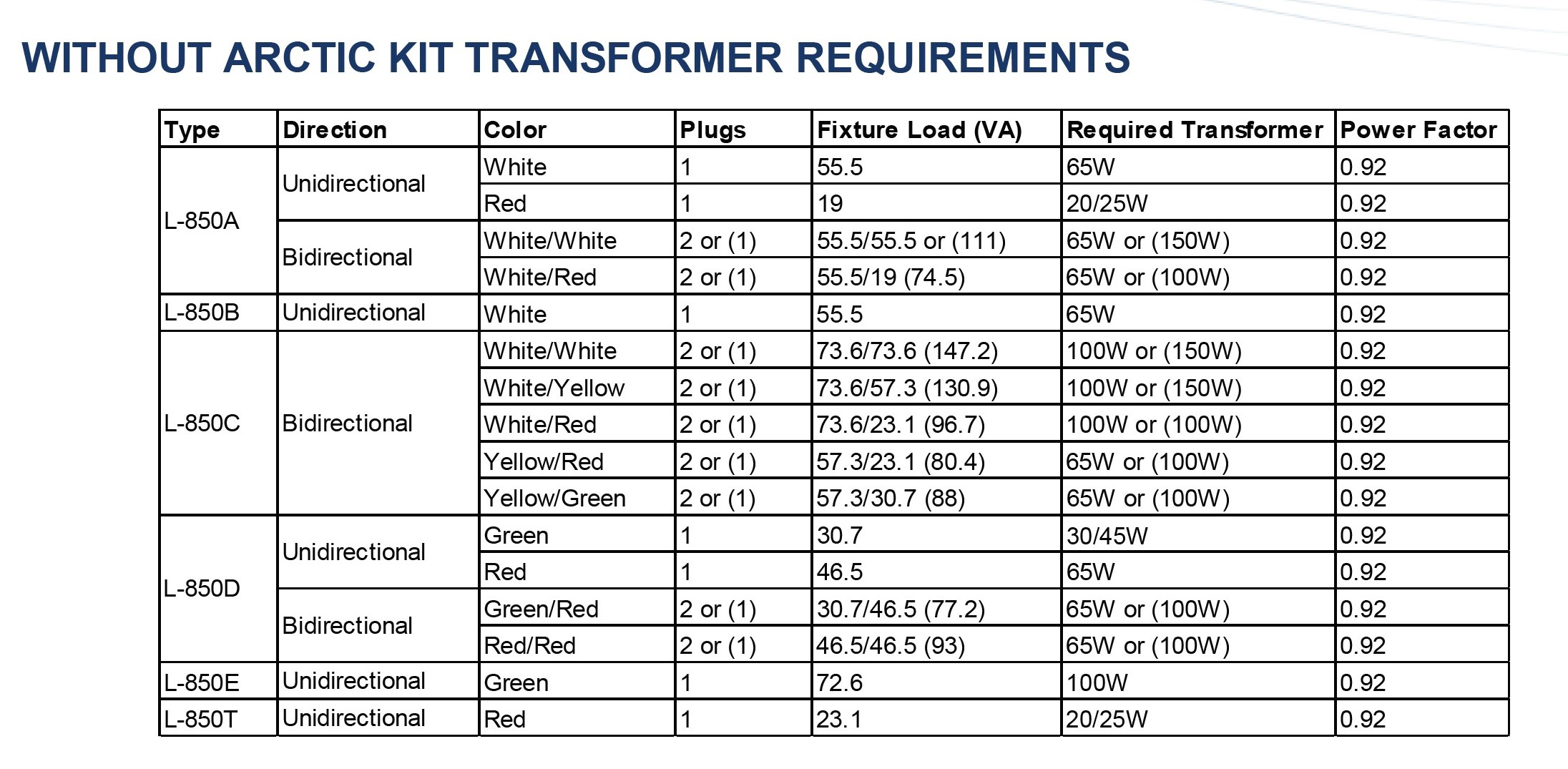

WITHOUT ARCTIC KIT TRANSFORMER REQUIREMENTS WITH ARCTIC KIT TRANSFORMER REQUIREMENTS

L-850A(L), L-850B(L), L-850C(L),
L-850D(L), L-850E(L), L-850T(L)
FAA AC 150/5345-46 (current edition)
FAA Engineering
Brief 67D
Certified to FAA AC 150/5345-46 and EB67D
Meets “Buy American” requirements.

Weight: ~ 10.2 lbs

Dimensions:

Height (Depth) 3.93 inches
Outer Diameter 11.94 inches
Bolt-Circle Diameter 11.25 inches
L-850 A/B/C/D/E/T LED
IN-PAVEMENT LIGHTS – 2.4
L-850B, C, and D (Green) Fixtures Only

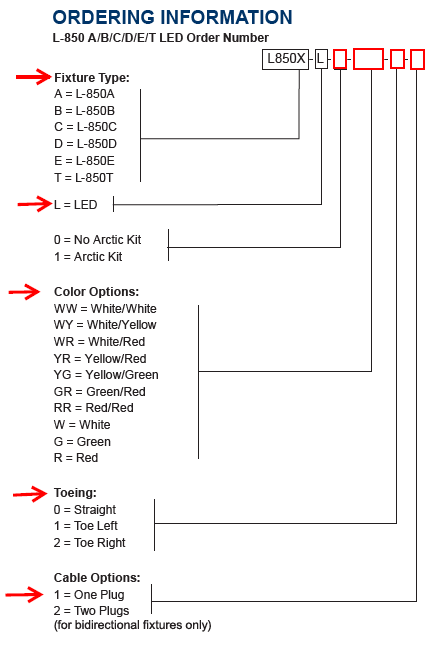

Ordering information
