77-4017 FlashGuard Series
77-4017 cable from the FlashGuard series that features flexible, practical cabling encased in a polythlyne jacket.

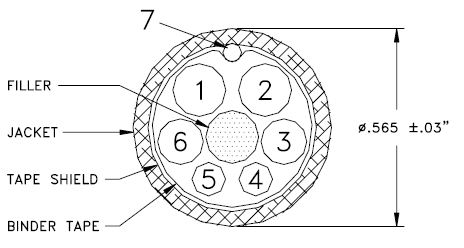

Cabling:
– Core: minimum filler to keep as flexible as practical

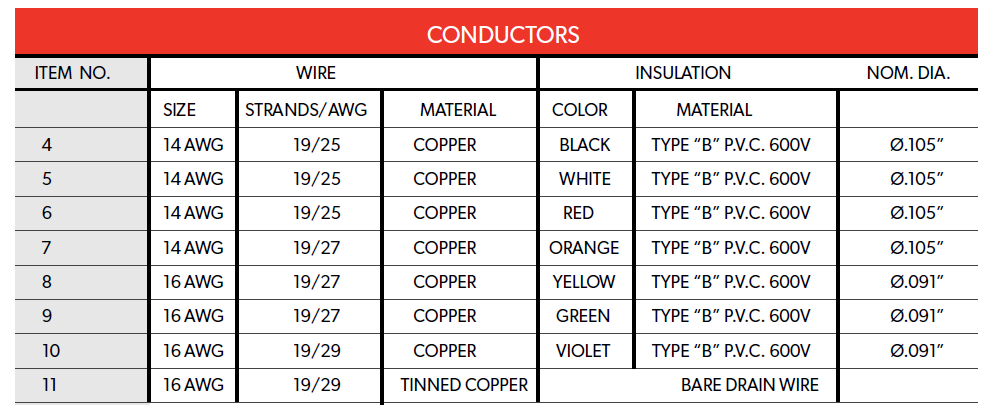

– Outer Layer: 7 wires, items 4-10 (4 #14 + 3 #16 AWg) cabled around the core with a 7” left hand lay
Binder: 0.002” mylar tape – 25% minimum overlap
Tape shield: 0.002” aluminum mylar tape – 25% minimum overlap
Drain wire: item 11 is pulled under the shield
Jacket: 0.025 polythlyne – color: black
Overall diameter: Ø.565 ±.03
Temperature rating: – 55°c to +80°c
Voltage rating: 600 VRMS (conductors 2500 VRMS for electronic use)
Insulated conductors: UL1015 CSA TRE2 IPCEA S–61–402
Cable: UL2653 CSA TR32 IPCEA S–61–402
Voltage testing: Finished cable tested at 2000 VRMS between every two conductors and between each conductor and the shield. 100% test.
