100VA 6.6A – 115VAC Power Adapter
MODEL 130-0007-001
The Model 130-0007-001 100VA 6.6A - 115VAC Power Adapter can be used for a number of applications requiring 115vac in the field. Whether it is for maintenance to run a drill, or to operate a 115/120VAC airfield lighting product from your series circuit (CCR).

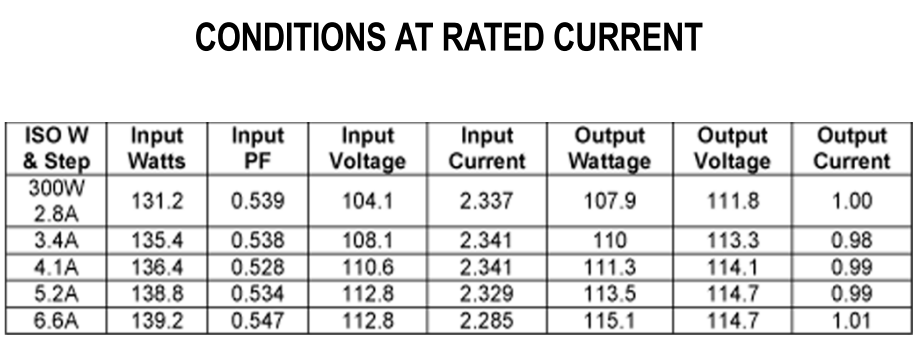

- The power adapter transformer is designed to provide reliable 115VAC power at all brightness from 2.8A through 6.6A. The adapter is most efficient when powered with a 300W isolation transformer, a 200W transformer can be used with an overall reduction in output voltage of approximately 6%.
- The rugged NEMA 4X enclosure allows for continuous outdoor service. The unit will operate from a minimum of -40 degrees to a maximum of +65 degrees.
- Designed to operate with all Constant Current Regulators (CCR) regardless of the theory of operation
- can be installed anywhere in your series circuit using either a 200W or 300W isolation transformer.
- Furnished with the FAA L-823 plug assembly to connect to the isolation transformer. Can be built to order with any connector configuration as well as weather tight duplex outlet for plugging in drills, saws, etc.
- Warranty for one (1) year under normal operating conditions.
